Ready mixed concrete batching plant is mainly composed of mixing console, materials weighing system, material conveying system, material storage system and control system of large system and other ancillary facilities.

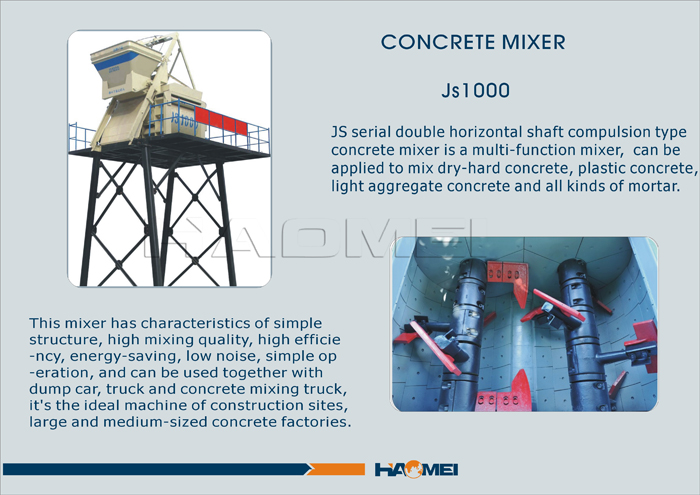

The mixing host

The main mixing host is divided into forced concrete mixer and self dropping concrete mixer according to its stirring mode. Forced concrete mixer is the mainstream of concrete batching plant at home and abroad, it can stir the liquidity, semi dry and dry hard and other concrete. The main stirring liquid concrete of self - dropping mixer is seldom used in concrete mixing batch plant at present.

Compulsory concrete mixer in the form of the structure as the main planetary concrete mixer, single horizontal shaft concrete mixer and twin shaft concrete mixer. The comprehensive performance especially in the twin shaft compulsory mixer best.

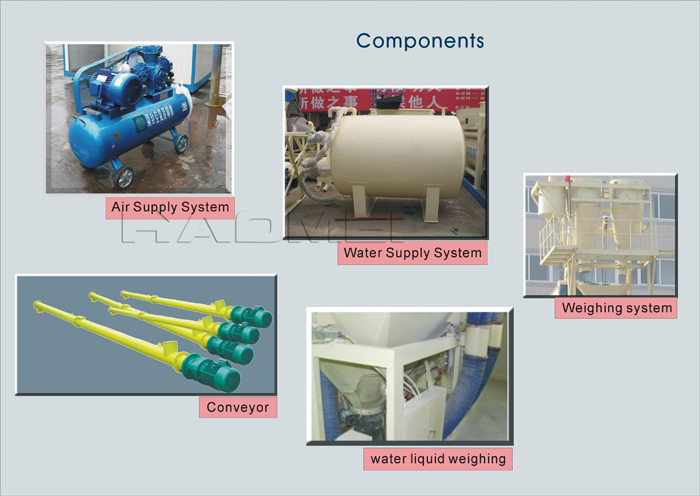

Material weighing system

Material weighing system is the key component that affects the quality of concrete and the cost of concrete production. It is mainly divided into three parts: aggregate weighing, powder weighing and liquid weighing. In general, 20 cubic meters per hour following the mixing station by superposition weighing way, namely the aggregate (sand, stone) with a scale of cement and fly ash with a scale, water and liquid additives were weighed, and then put into the liquid additive water bucket in premix. In the mixing station of more than 50 cubic meters per hour, the weighing method of weighing materials is adopted, and all weighing are controlled by electronic scale and microcomputer.

Material conveying system

Material transportation consists of three parts. Aggregate transportation: at present, there are two ways of mixing hopper conveying and belt conveying at mixing station. The advantages of hopper lifting are small footprint and simple structure. Belt conveyor has the advantages of large conveying distance, high efficiency and low failure rate. The belt conveyor is mainly suitable for the mixed concrete batching plant with aggregate temporary storage, so as to improve the productivity of the mixed concrete batching plant. Powder conveying: the powder available for concrete is mainly cement, fly ash and mineral powder. At present, the powder conveying method is widely used in the screw conveyor, and the large mixing building adopts pneumatic conveying and scraper conveyor. The advantages of spiral conveying are simple structure, low cost and reliable operation. Liquid delivery mainly refers to water and liquid admixtures, which are transported by pumps respectively.

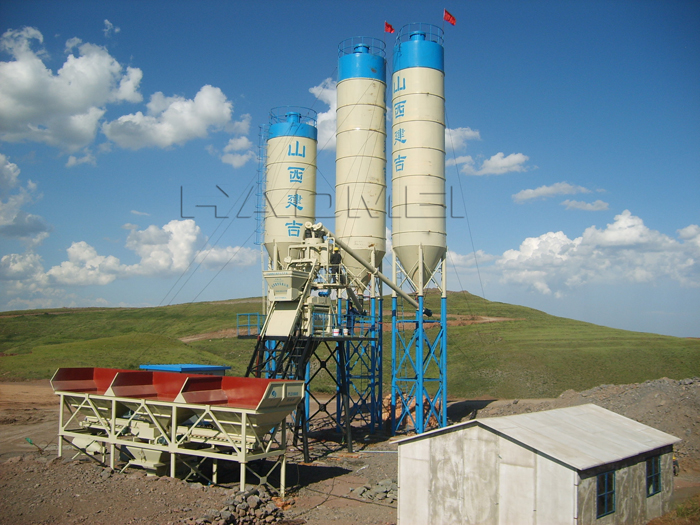

Material storage system

Basically the same concrete material storage available way.Aggregate open-air stacking (there is also a large commodity concrete batching plant in the city closed bin);Powder with fully enclosed steel silo storage;Container storage admixture with steel structure.

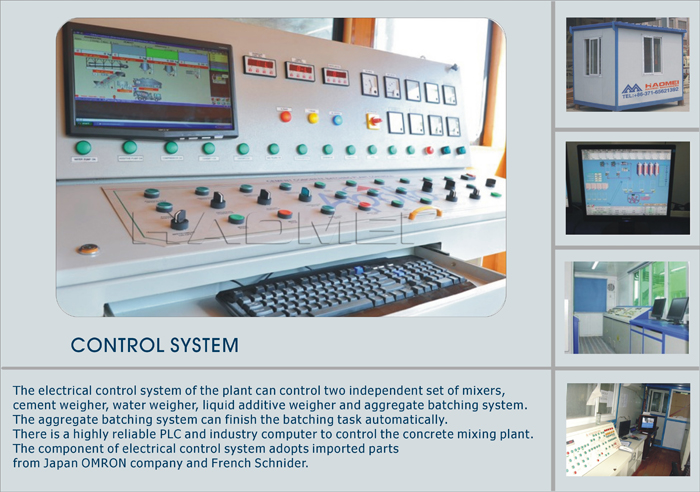

Control system

The control system of the ready mixed concrete mixing plant is the central nervous system of the whole set of equipment. According to the size of the concrete plant , the control system has different functions and preparation. In general, the system of the large concrete plant is relatively complex.
