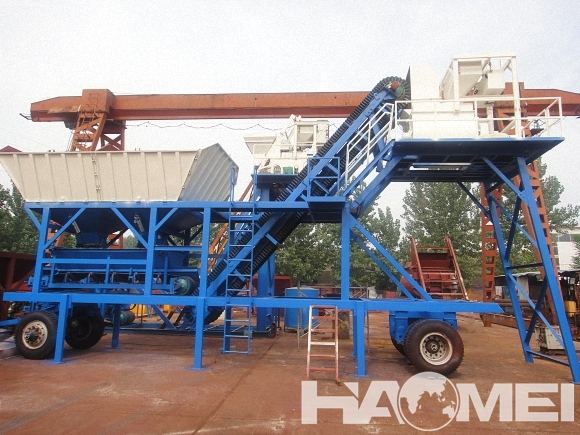

Mini mobile batching plant,commercial mobile concrete batching plant for the need for short-term transition production of concrete production enterprises to provide a great convenience, and the price is right.YHZS25 and YHZS35 mobile concrete batching plant all belong to mini mobile batching plant.

Mobile concrete batching plant , assembly degree is high, all components are manufactured in the factory, construction site assembly.Site structure to reduce 70% of the high strength bolt, make installation is accurate, rapid and less work.Due to adopt pin shaft connection, convenient disassembly, is advantageous to the concrete mixing station renovation and relocation.
The main structure of the mobile batching plant is divided into three parts: the material layer, the mixing layer and the weighing layer.
1, the material layer with simple cylindrical legs, the main station space is spacious, rational layout, easy operation and maintenance. In particular, the main station with hinge structure, the material layer lane wide, simple and neat appearance, the overall image of the concrete mixing station is good.
2, mixing layer platform adopts steel structure, the double variable cross-sectionh girder, the heavier weight, rigidity and damping properties is superior to the ordinary structure, mixing layer and discharging constitute a rigid body, become an organic whole repeatedly with the base, effective from mixing console vibration is weakened;Supported with rectangular leg, not only the structure is simple, and the space is capacious.
3, the ingredients weighing layer of a total of two weighing weighing hopper (cement, fly ash), a water weighing bucket, the liquid admixture weighing bucket two and aggregate prefabricated bucket. Weighing all the use of high-precision sensors, easy to install, easy to adjust, the use of reliable. Powder weighing bucket exit at the use of automatic control of the pneumatic butterfly valve, import and export are used soft coupling, fully enclosed. Admixture weighing bucket set in the water metering bucket above the exit at the use of stainless steel ball valve discharge.
